Varient 9 m Length | |
---|---|
Dimension LxWxH : |
9700X2500X3070 mm |
Seating capacity : |
24+1+1(wheelchair area) |
Tyre size : |
215/75 R17.6 |
Max speed : |
81 (With Speed Limiting Device) |
Input voltage : |
4 Phase AC |
Motor : |
90 Kw @ 3,500 Nm |
AC : |
24000kcal/h |
Specifications | |
---|---|
Maximum Power : |
180kW |
Maximum Torque : |
1500 Nm |
Transmission/Gear : |
Automatic Transmission |
Brake System : |
Disk Brake with ABS |
Steering System : |
Power-assisted |
Suspension Type : |
Front and Rear Air Suspension |
Battery Specification : |
Li-ion Phosphate |
Battery : |
Available |
Range : |
Up to 200 km |
Charging Time : |
3-4 hrs. |
Body Description : |
Meeting AIS 052 Specification |
Door : |
Single Door |
Air Conditioner : |
Available |
Charging Mode : |
AC Charging <= 40 kW |
Motor : |
90 Kw @ 3,500 Nm |
Suspension system : |
2 front and 4 rear air suspensions |
Front axle(T) : |
> 7.5 |
Rear axle(T) : |
13 |
Power steering pump : |
Dual power steering pumps |
Tire : |
275/70R22.5 |

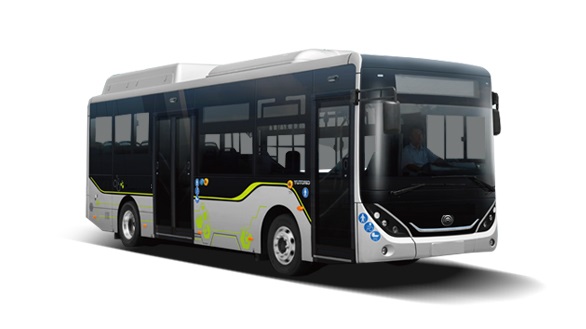

It is a type of public transportation vehicle that runs on electricity instead of traditional fossil fuels like gasoline or diesel. Krossmark designed electric city buses to provide clean, efficient, and environmentally friendly transportation in urban areas.
Electric city buses are powered by rechargeable batteries, typically lithium-ion batteries, which store electricity to propel the vehicle.
Unlike buses with internal combustion engines, electric city buses produce zero tailpipe emissions. They do not release harmful pollutants such as carbon dioxide (CO2), nitrogen oxides (NO2), or particulate matter, resulting in improved air quality and reduced noise pollution.
HDD player, MP3 player & DVD player options are available for entertainment purpose as per requirement.
Protection against Short Circuit / Over-temperature / Lightning Protection is provided to make this bus safer.
